Summary

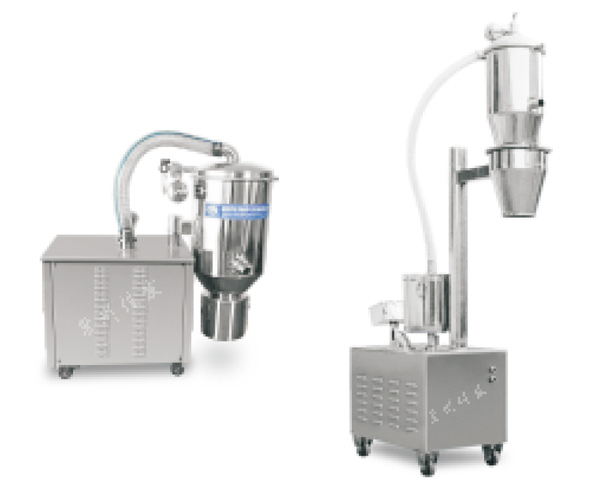

Vacuum feeding machine is a new type of feeding equipment developed based on our extensive research, absorption, and digestion of new foreign models. It is an ideal equipment for conveying materials such as powder, granulation, material mixing, and powder granulation.
Model | Motor power (kW) | Vacuum pump type | Maximum conveying capacity (kg/h) | Overall dimensions | Suction tube diameter |
ZKS-1 | 1.5 | Vortex fan | 400 | Φ220×800 | Φ38 |
ZKS-2 | 2.5 | Vortex fan | 600 | Φ220×800 | Φ38 |
ZKS-3 | 3 | Vortex fan | 1000 | Φ290×950 | Φ51 |
ZKS-4 | 5.5 | Vortex fan | 1500 | Φ420×1250 | Φ51 |
ZKS-5 | 5.5 | Two stage vortex fan | 2000 | Φ420×1350 | Φ51/63 |
ZKS-6 | 7.5 | Vortex fan | 2500 | Φ420×1450 | Φ63 |
ZKS-7 | 7.5 | Two stage vortex fan | 3000 | Φ420×1600 | Φ76 |
ZKS-10-6 | 7.5 | Roots Blower | 5000 | Φ600×1550 | Φ76 |
ZKS-20-5 | 11 | Roots Blower | 6000 | Φ800×1900 | Φ89 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
