Summary

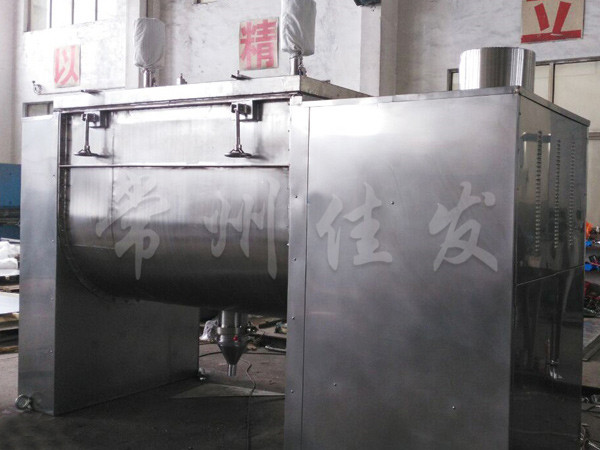

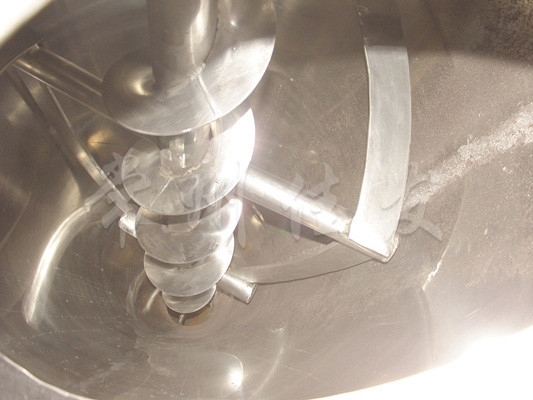

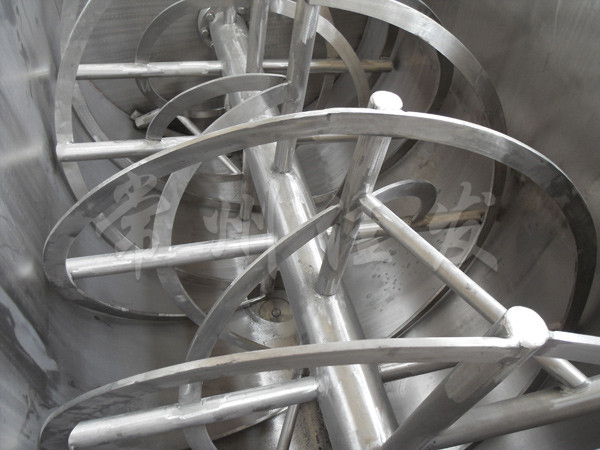

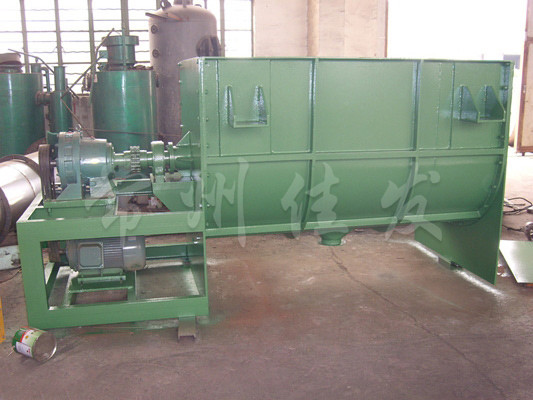

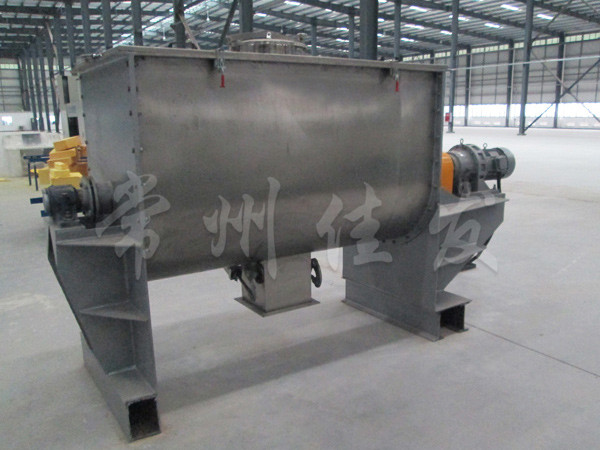

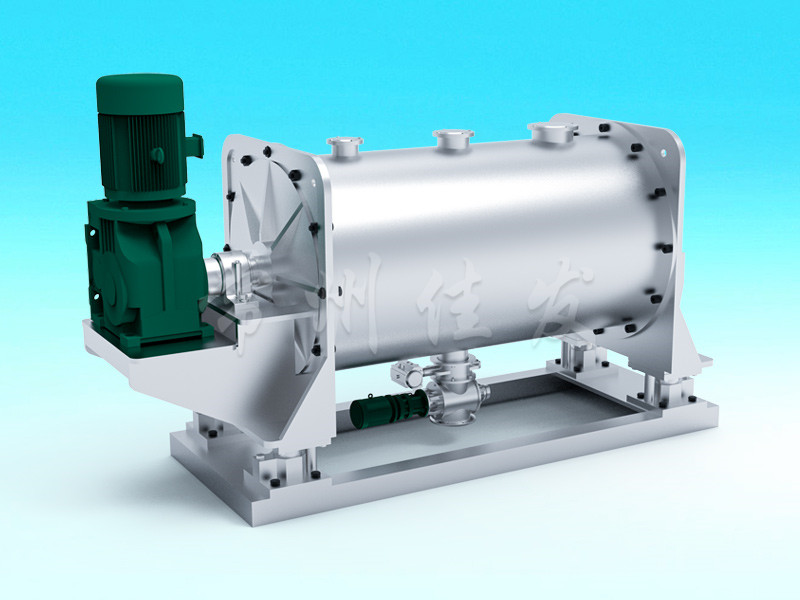

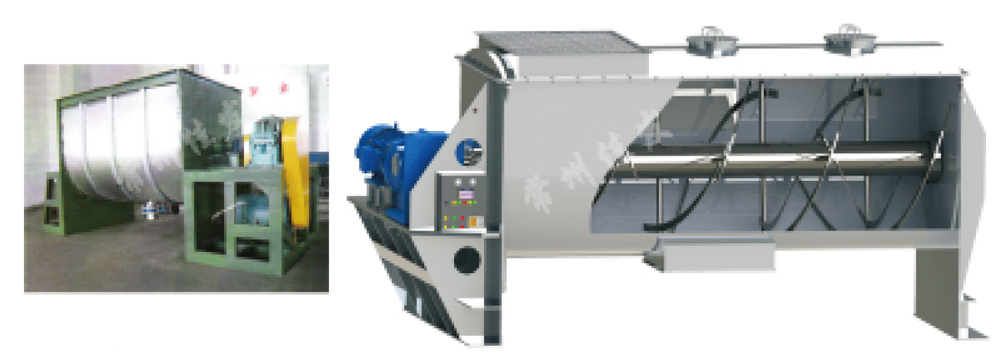

This model is composed of container spiral stirring blades and transmission components. The spiral blades are generally made into two or three layers, with the outer spiral collecting materials from both sides to the center, and the inner spiral conveying materials from the center to both sides, forming convective mixing. The volume can be made into a circular shape for easy clamping and reaction drying.
Characteristic
High loading coefficient and small equipment footprint.
Application
Spiral belt mixer is generally used for mixing sticky or cohesive powder particles, as well as adding liquid and paste materials to the powder particles. Due to the difficulty in cleaning sticky materials, it is suitable for mixing in situations with high production and infrequent variety changes.
| Model specifications | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| Disposable mixing (kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Installed power (kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Equipment weight (kg) | 420 | 850 | 1060 | 1790 | 1900 | 2750 | 3500 | 4280 | 5300 | 6800 | 7800 |
Note: The above products are manufactured from A3 steel or stainless steel according to customer requirements.
