Summary
This machine is widely used in industries such as medicine, chemicals, food, dyes, feed, fertilizers, pesticides, etc., especially suitable for mixing various solid materials with large tonnage (1000-10000L).

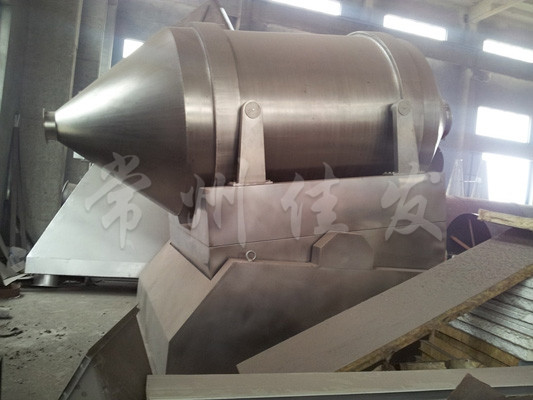

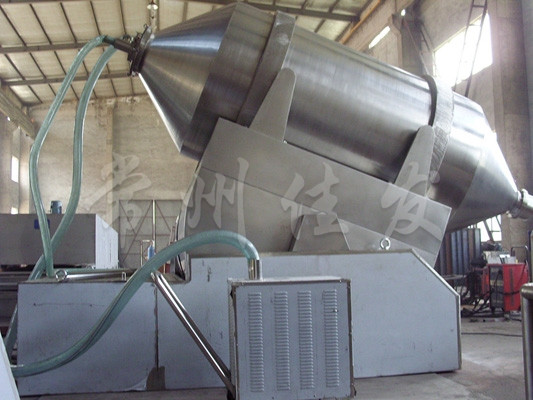

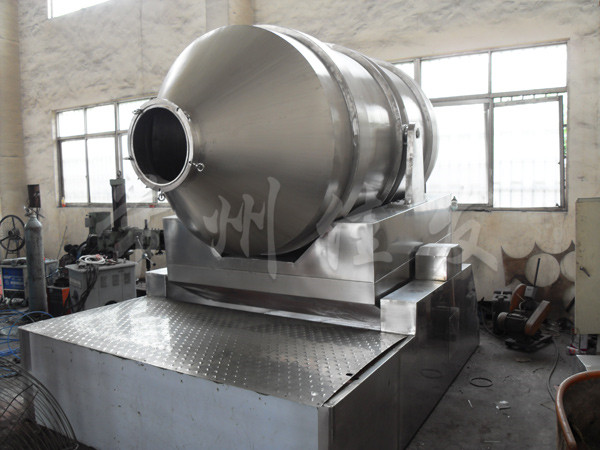

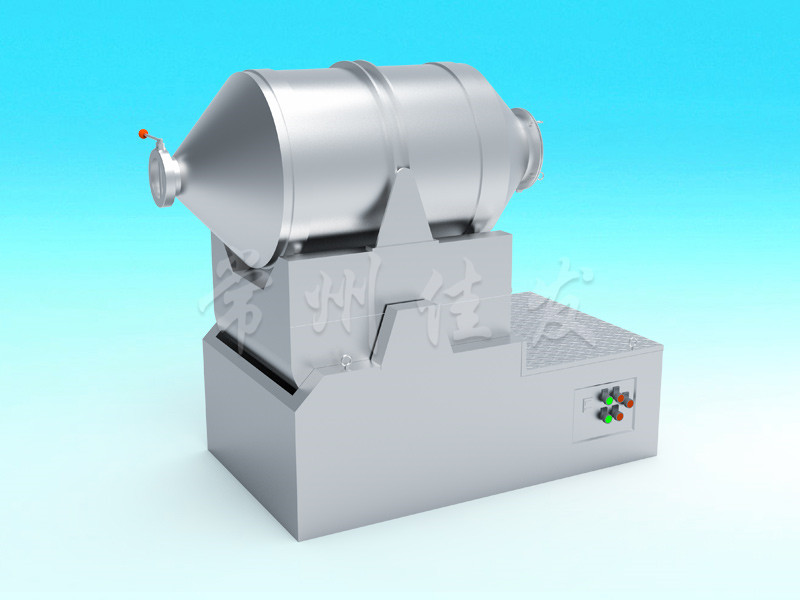

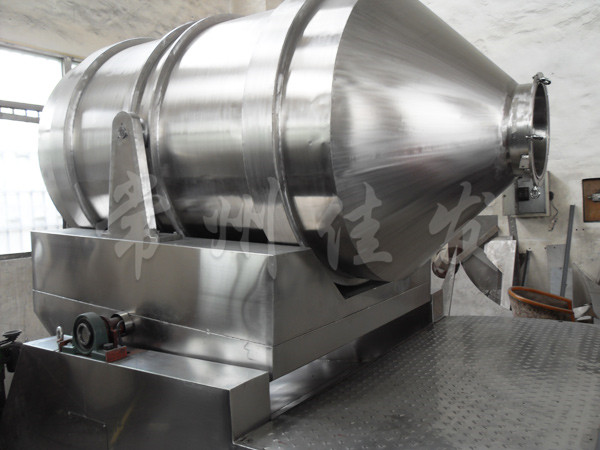

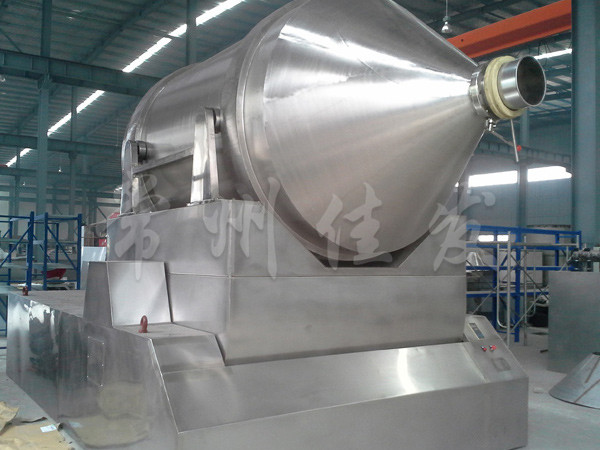

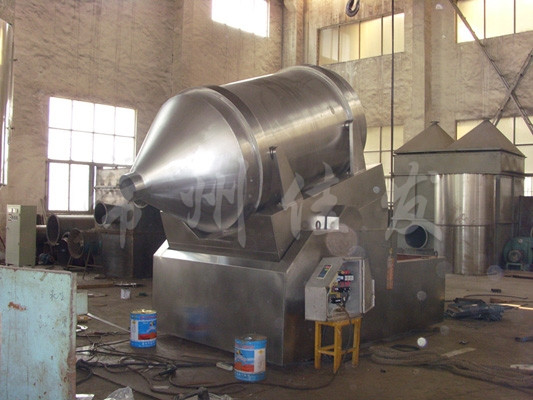

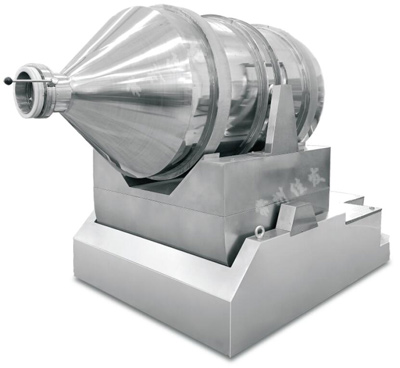

The mixing cylinder of this machine not only drives but also participates in swinging, allowing the materials in the cylinder to be fully mixed. The discharge of the mixing cylinder is equipped with spiral blades, making the machine characterized by rapid mixing, large mixing volume, and convenient discharge.
| Specification and model | Volume (L) | Loading coefficient | Loading weight (kg) | External dimensions (mm) | Power（kw） | ||||||
| A | B | C | D | M | H | Turn | Swing | ||||
| EYH100 | 100 | 50 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 150 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 300 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 400 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 500 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 750 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 1000 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 1250 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 1500 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 2500 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 5000 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 6000 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 7500 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
