Application Overview

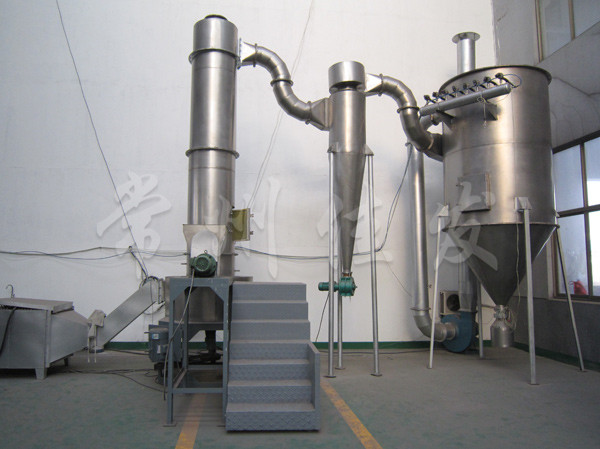

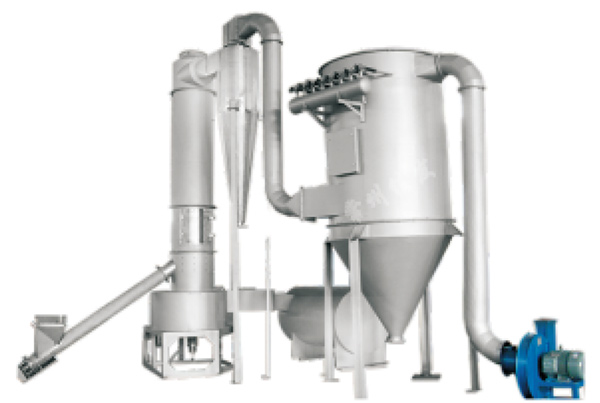

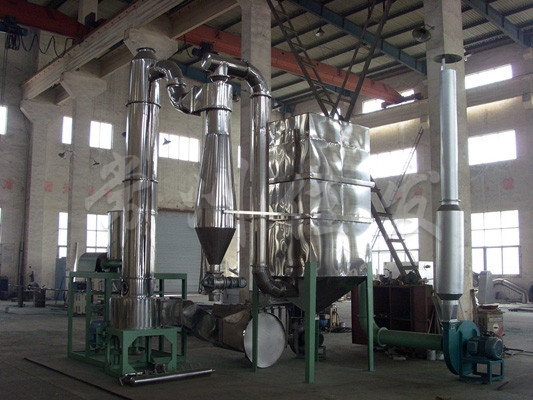

XSG rotary flash dryer is a new type of drying equipment used to dry materials such as paste, filter cake, and powder.
Equipment characteristics
★ Due to the material being subjected to centrifugation, shearing, collision, and friction, it is highly dispersed and the relative velocity between gas and solid is relatively high, which enhances mass and heat transfer, making the production intensity of this machine high.
★ The dry gas enters the bottom of the dryer and generates a strong rotating airflow, which strongly washes out the materials on the wall and eliminates the phenomenon of wall sticking.
★ In the high-temperature area at the bottom of the dryer, the heat sensitive materials do not come into direct contact with the hot surface, solving the problem of coking discoloration of heat sensitive materials.
★ Due to the high circumferential gas velocity in the drying room and the short residence time of materials, efficient, fast, and small-scale equipment production can be achieved.
★ The classifier on the upper part of the drying room can control the particle size and humidity of the outlet materials.
Specification Items | Dryer cylinder diameter(mm) | Host size(mm) | Host power(Kw) | Processing air volume(m3/h) | Evaporated water volume(kg.H?O/h) | Floor plan size(mm) |
XSG-2 | ?200 | ?300x2800 | 0.75-2.2 | 300-800 | 10-20 | 3500x2500 |
XSG-3 | ?300 | ?400x2800 | 1.5-3 | 600-1500 | 20-50 | 3800x2700 |
XSG-4 | ?400 | ?500x3000 | 3-4 | 1250-2500 | 25-70 | 4000x3000 |
XSG-5 | ?500 | ?600x3200 | 5.5 | 1500-4000 | 30-100 | 4200x3200 |
XSG-6 | ?600 | ?700x3500 | 5.5-7.5 | 2500-5000 | 40-150 | 4250x3250 |
XSG-8 | ?800 | ?900x4000 | 7.5 | 3000-8000 | 60-200 | 4500x3500 |
XSG-10 | ?1000 | ?1100x4500 | 7.5-11 | 5000-12500 | 100-300 | 4750x3750 |
XSG-12 | ?1200 | ?1300x5000 | 11-15 | 10000-20000 | 150-500 | 5000x4000 |
XSG-14 | ?1400 | ?1500x5500 | 15-18.5 | 14000-27000 | 200-600 | 5250x4250 |
XSG-16 | ?1600 | ?1700x6000 | 22 | 18700-36000 | 250-800 | 5500x4500 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
